Less running cost due to no requirement of V-groove cut
Features

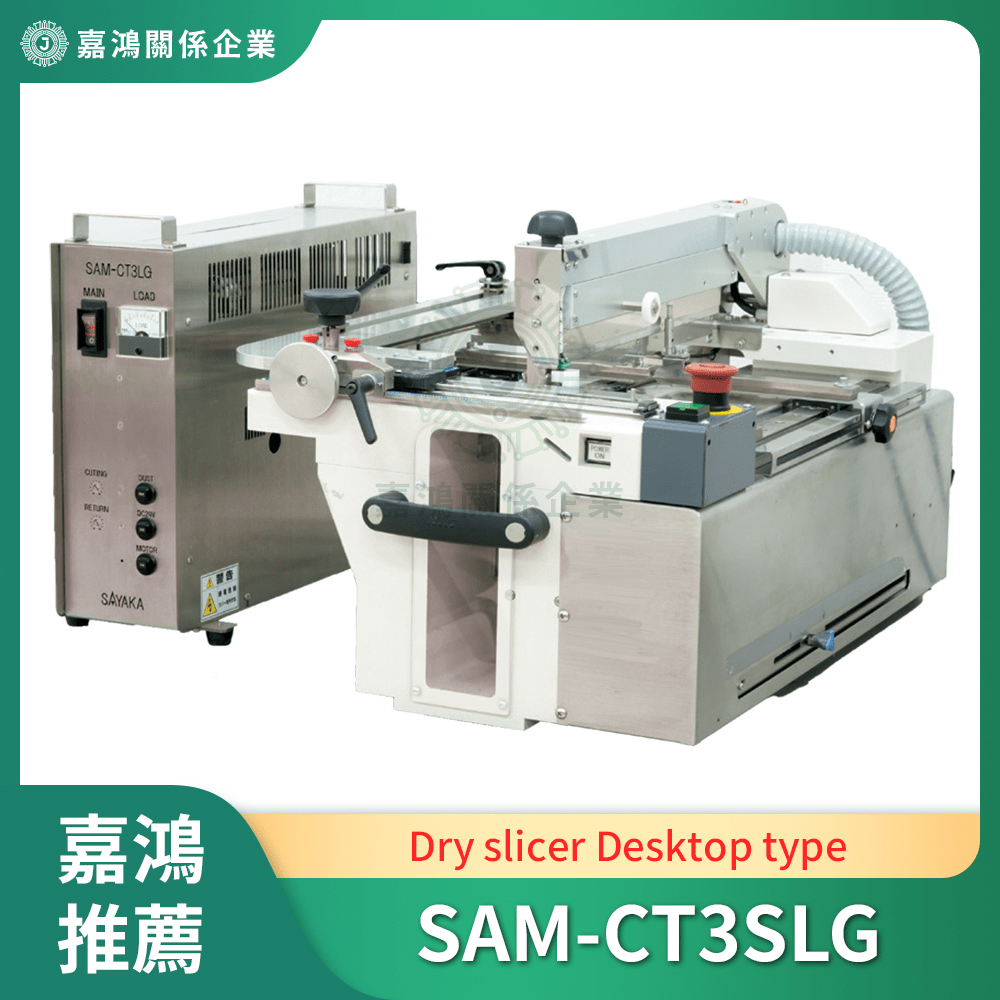

| Model | SAM-CT3SLG | ||
| Board thickness | X: max. PCB-holding length | standard: 196mm, option: 296mm | |
|---|---|---|---|
| Board thickness | t=0.5-2.0mm | ||
| Y: cut length (board length) | 330mm | ||
| Material | FR4, CEM3, etc | ||
| Component height limit | Upper face: 47mm Bottom face: 10mm (including PCB thickness) | ||
| Maximum cut lines | 16 Line | ||
| Blade | GC blade | φ125×φ40×t=0.2-0.5mm (standard t=0.3mm) | |
| Chipped saw | φ125×φ40×t=0.5mm (standard) | ||
| PCB hold | PCB directly | Mechanical chuck or slide rails | |
| Tig fix ture | Fixing on jig | ||
| Spindle | Motor | Inverter-driven induction motor (60W) | |
| Spindle RPM | 0-5700rpm | ||
| Feed | Motor | DC motor | |
| Cutting speed | 16mm-63mm | ||
| Motion speed | 47mm-88mm | ||
| Machine body | Power supply | 100V 50/60Hz | |
| Maximum electric consumption | approx. 0.3kVA (excluding dust collector) | ||
| Outer size | W475×D752×H401mm (Chuck unit/upper holder) W546×D752×H680mm (Chuck unit/upper holder) | ||
| Weight | approx. 53kg | ||
| Controller box size | W170×D420×H363.5mm | ||
| Controller box weight | approx. 12kg | ||
