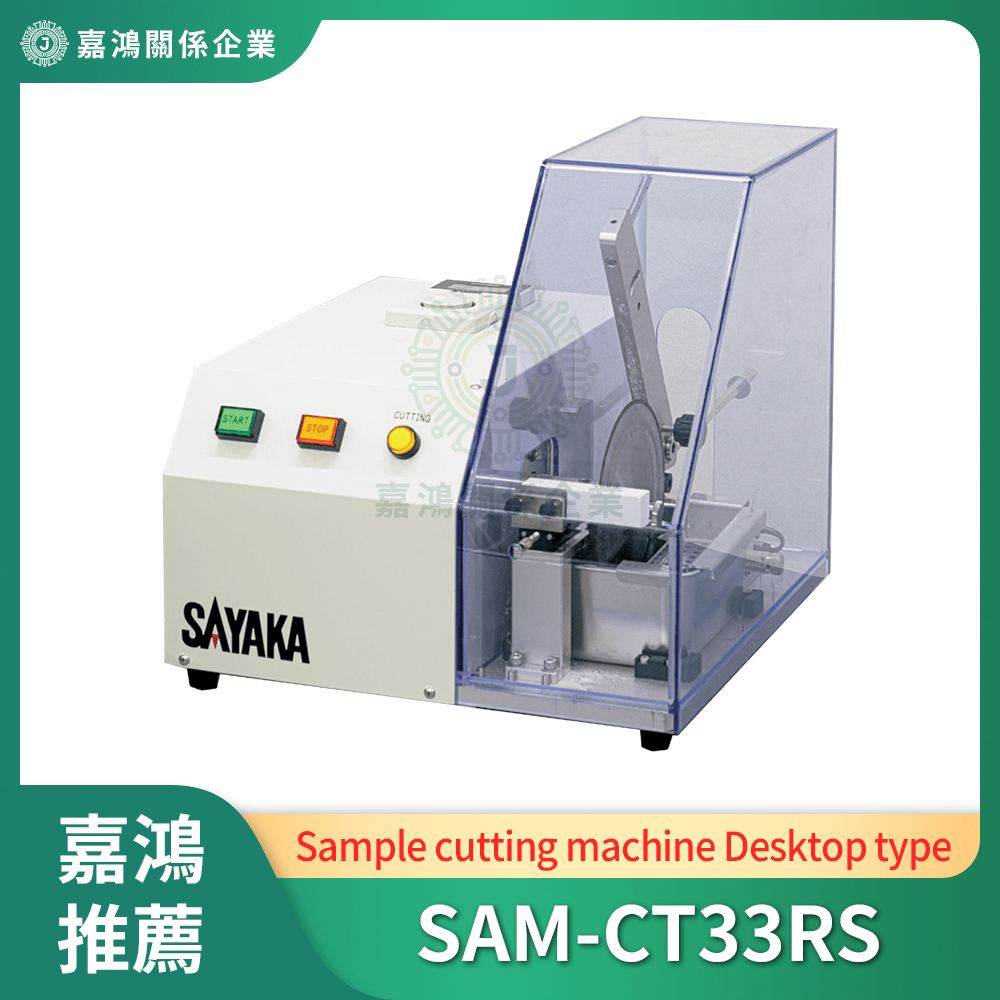

樣品切割機 (Sample cutting machine)_SAM-CT33RS

NT$99,999

總價 : NT$99,999

台灣獨家代理

Adaptive to rarious target shapes by designated jig
Features

  • Designated jig is available to adapt to various target shapes
  • Blade RPM is changeable
  • Target materials are cut highly precisely with our technology
  • Various materials can be cut: ceramics, metals, PCB, composite materials
  • X axis positioning is also possible (option)
  • Polishing is also available (option)

商品規格

ModelSAM-CT410RS
Target MaterialCutting range100×100mm
MaterialSubstrate, ceramics, glass, metal, electronic component, etc
Height limitUpper face: 40mm
BladeGC bladeφ205×φ25.4×t=0.7-0.8mm
   Object holdClamp jig
SpindleMotorDC brushless motor
Spindle RPM0-4,000rpm
FeedStepping motor
Cutting speed0.01mm-99.9mm/sec
Machine bodyPower supplyφ3 AC200V 50/60Hz
Maximum electric consumptionapprox. 0.35kVA (excluding dust collector)
Outer sizeW760×D620×H650mm
Weightapprox. 390kg
Dust collectorφ1 100V 50/60Hz approx. 1kVA
