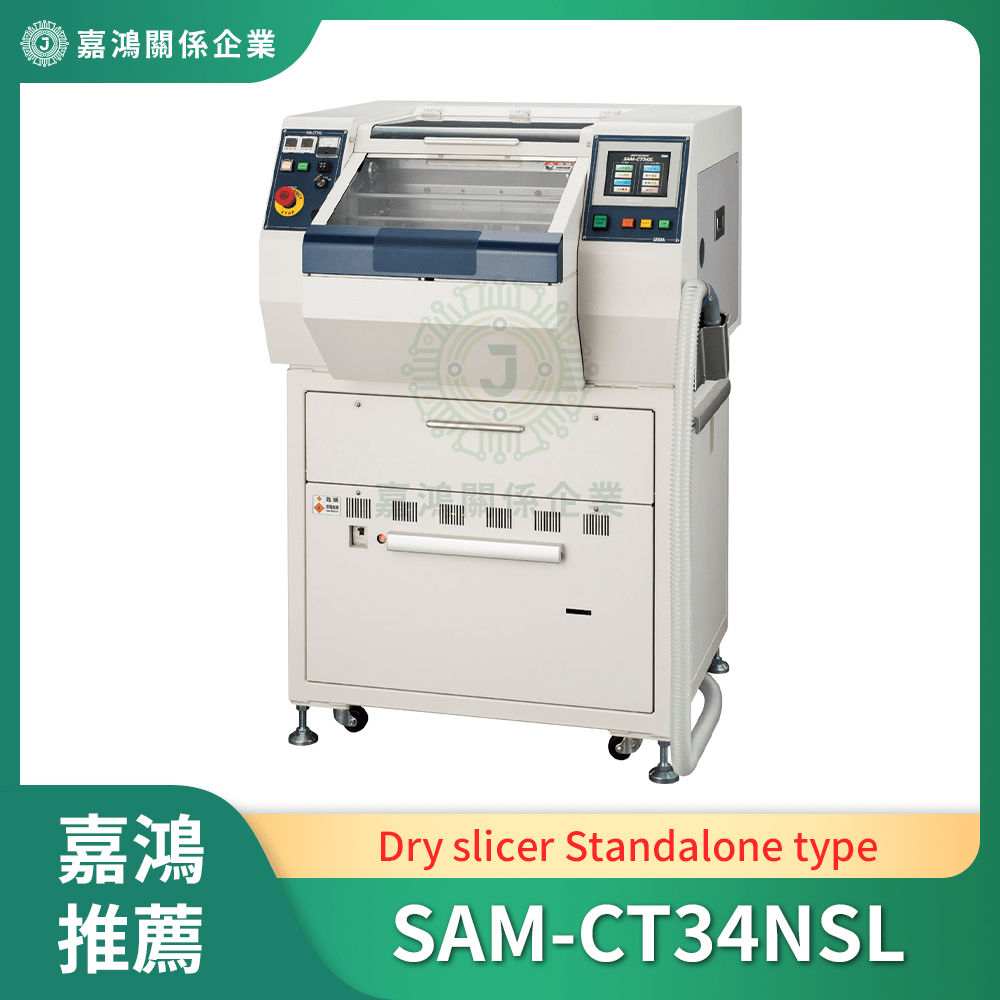

High rigidity and precision cut and human error prevention
Features
- Specifications of pallet-use or non-pallet-use can be selected according to PCB shape
- Easy program teaching can be done by operating the touch-display
- Running cost is reduced because PCB doesn’t require V-groove process
- The cut face is ground and becomes quite smooth
- The stress affected on PCB is little comparing with other existed depaneling methods
- Cut line can be confirmed by monitor (option)
- Cutting speed can be adjusted for mass production
商品規格
| Model | SAM-CT34NSL | ||
| Board thickness | Cutting range | 330×400mm | |
|---|---|---|---|
| Board thickness | t=0.4-2.0mm | ||
| Material | FR4, CEM3, etc | ||
| Component height limit | Upper face: 47mm Bottom face: 10mm (including PCB thickness) | ||
| Blade | GC blade | φ125×φ40×t=0.2-0.5mm (standard t=0.3mm) | |
| Chipped saw | φ125×φ40×t=0.5mm (standard) | ||
| PCB hold | PCB directly | Mechanical chuck or slide rails | |
| Tig fix ture | Fixing on jig | ||
| X axis | Motor | Stepping motor (Non step-out) | |
| Max. cut speed | 300mm/sec | ||
| Motion speed | 300mm/sec | ||
| Y axis | Motor | Stepping motor (Non step-out) | |
| Conveyance speed | 90mm/sec | ||
| Motion speed | 200mm/sec | ||
| Repeatability positioning accuracy | ±0.03mm | ||
| Z axis | Driving method | Air cylinder | |
| R axis | Motor | Inverter-driven induction motor | |
| R-axis RPM | 5,700rpm | ||
| Machine body | Power supply | φ1 AC100V 50/60Hz | |
| Maximum electric consumption | 0.3kVA (excluding dust collector) | ||
| Air pressure | 0.4-0.5MPa | ||
| Air consumption | approx. 70L/min | ||
| Outer size | W900×D1,020×H1,330mm | ||
| Weight | approx. 330kg | ||
| Cut PRG creation | Touch-display | 7-inch frame | |
| Input method | Coordinate value input | ||
| The number of programs | max. 300 in machine, max. 3,000 in SD card | ||
| Machine body | Power supply | φ1 AC100V 50/60Hz | |
| Maximum electric consumption | 0.3kVA (excluding dust collector) | ||
| Air pressure | 0.4-0.5MPa | ||
| Air consumption | approx. 70L/min | ||
| Outer size | W900×D1,020×H1,600mm | ||
| Weight | approx. 330kg | ||
