Program teaching is done simply by using DXF data
Features
- The specifications are suited for pallet conveyance
- PCB can be placed and picked from above the cutting stage
商品規格

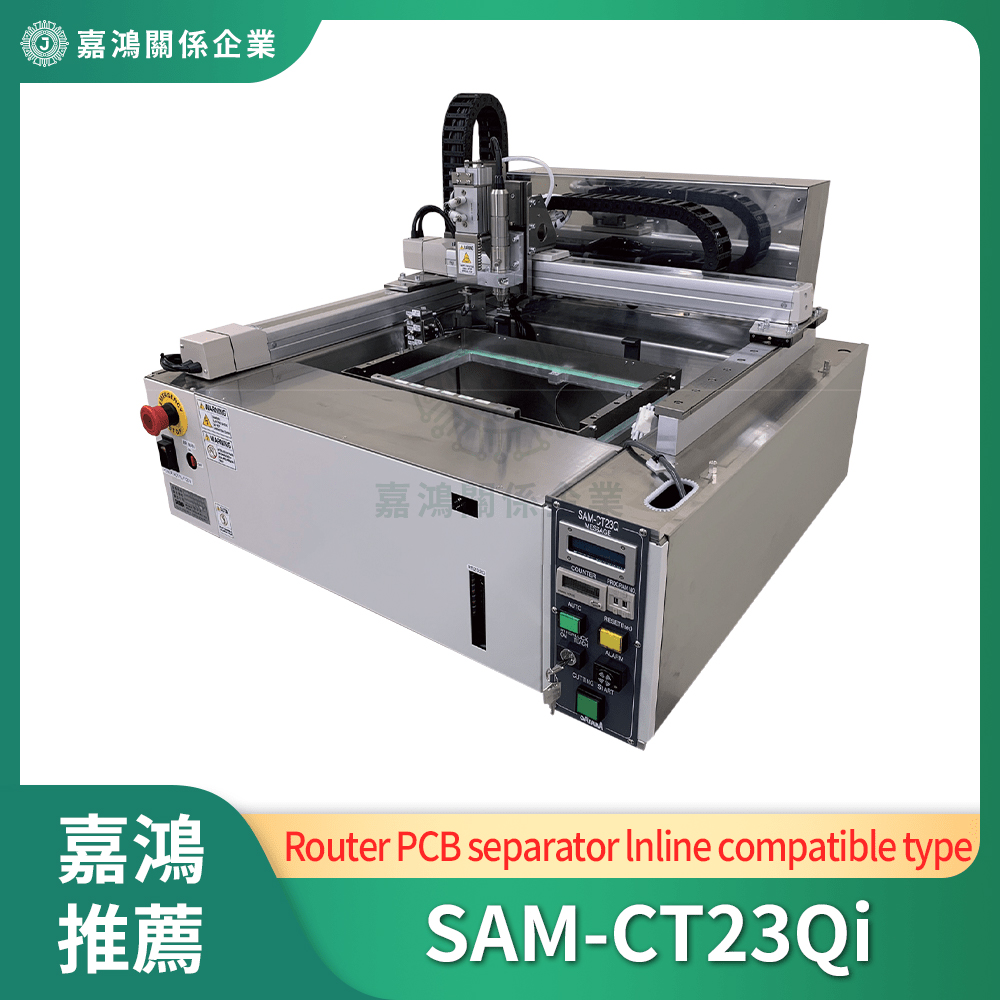

| Model | SAM-CT23Qi |
|---|---|
| Active range | 250×350mm |
| Board thickness | t=0.4-2.0mm |
| Material | FR4, CEM1, CEM3, etc. |
| Component height limit | Upper face: 23mm (including PCB thickness) |
| Router bit diameter | φ0.8-3.0mm |
| Maximum cut speed | 50mm/sec |
| Maximum motion speed | 400mm/sec |
| Repeatability | ±0.02mm or less |
| Z axis stroke | 25mm |
| Spindle RPM | standard 40,000rpm, Option: 5,000-60,000rpm (changeable) |
| X/Y/Z controls | AC servo motor (X-Y axes), Air cylinder (Z axis) |
| Power supply | φ1 AC100V 50/60Hz |
| Maximum electric consumption | approx. 1.2kVA (including standard dust collector [VNA-15]) |
| Air pressure | 0.5-0.7MPa |
| Air consumption | approx. 10L/min |
| Cutting program capacity | max. 60 kinds |
| Outer size | W720×D640×H533mm |
| Weight | approx. 65kg |
