Easy confirmation and editing of program data by connecting the machine and PC
Features
- The specifications are suited for pallet conveyance
- PCB can be placed and picked from above the cutting stage
商品規格

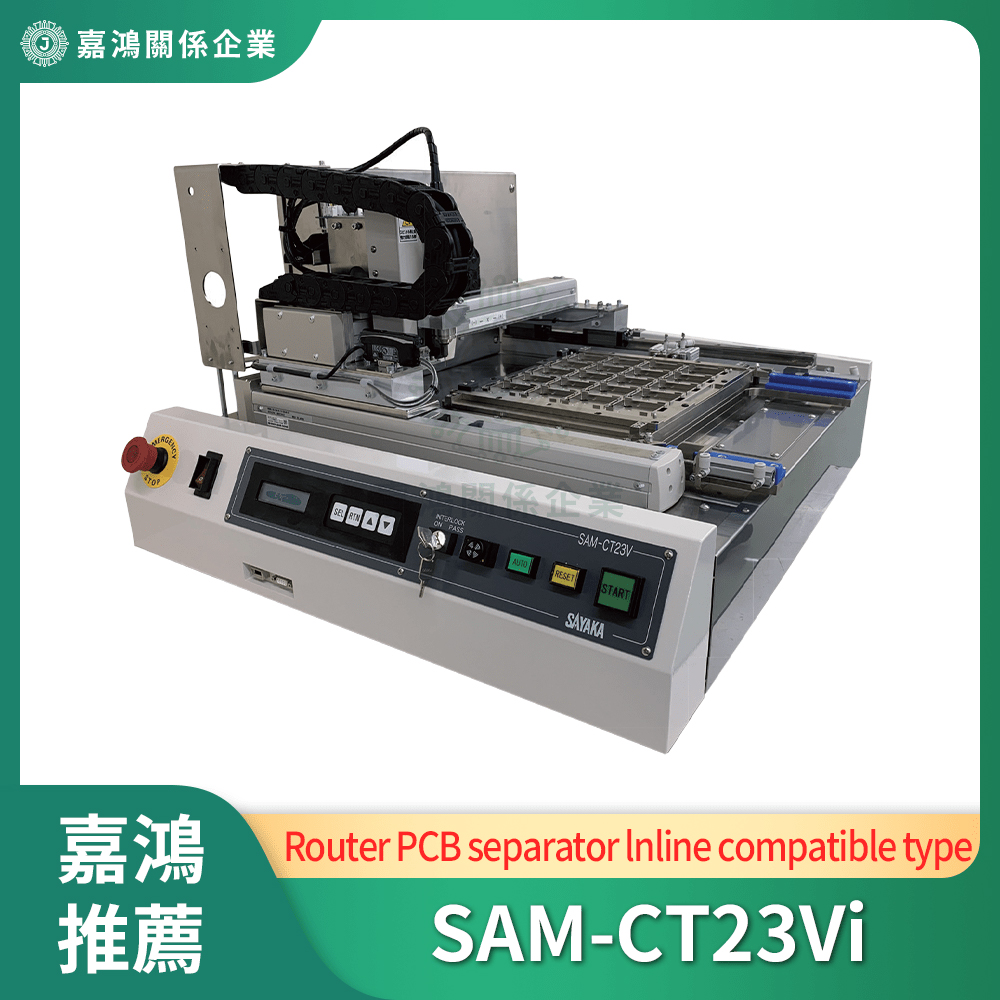

| Model | SAM-CT23Vi |
|---|---|
| Active range | 250×350mm |
| Board thickness | t=0.4-2.0mm |
| Material | FR4, CEM1, CEM3, etc. |
| Component height limit | Upper face: 30mm (including PCB thickness) |
| Router bit diameter | φ0.8-2.0mm |
| Maximum cut speed | 50mm/sec |
| Maximum motion speed | 500mm/sec |
| Repeatability | ±0.02mm or less |
| Z axis stroke | 35mm |
| Spindle RPM | 25,000-50,000rpm (changeable) |
| X/Y/Z controls | Stepping motor, Closed-loop control |
| Power supply | φ1 AC100V 50/60Hz |
| Maximum electric consumption | approx. 1.2kVA (including standard dust collector [VNA-15]) |
| Air pressure | No pneumatic required |
| Cutting program capacity | max. 100 kinds |
| Outer size | W664×D715×H602mm |
| Weight | approx. 65kg |
