Easy program teaching with DXF data-support software
Features

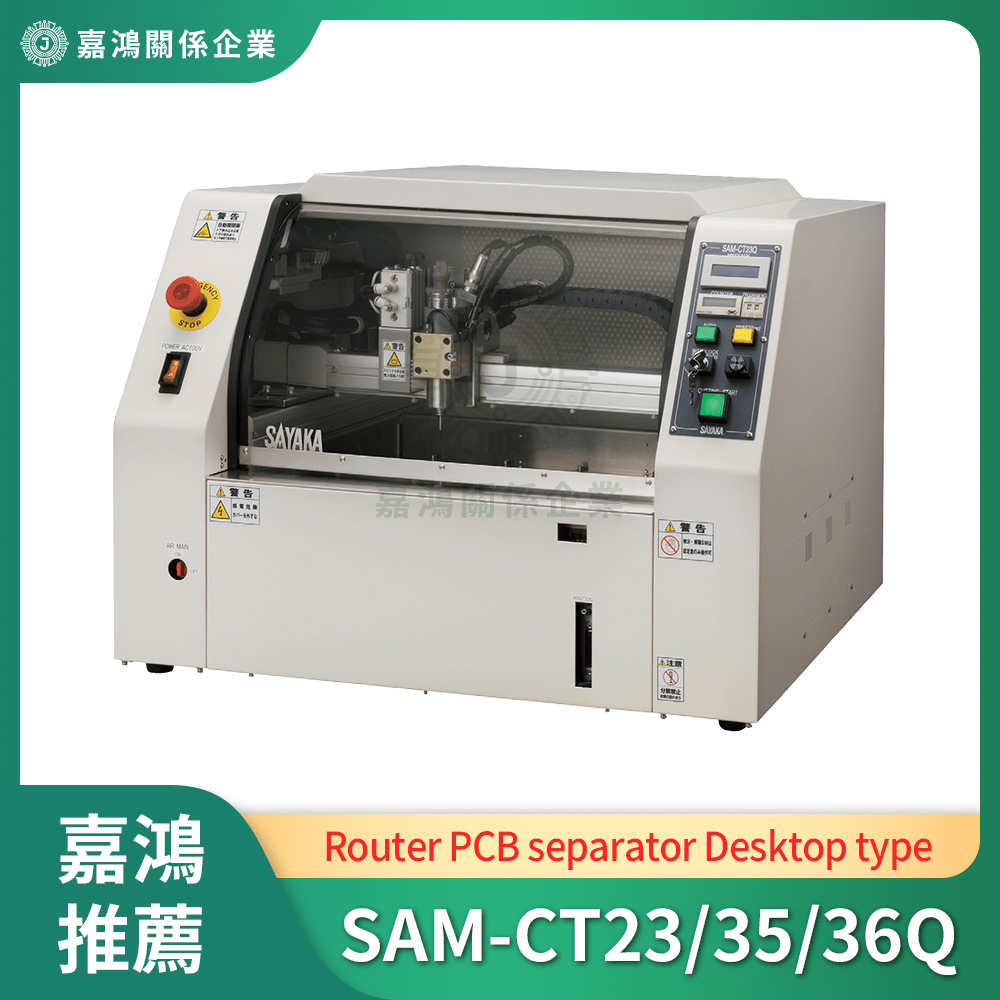

| Model | SAM-CT23Q (manual door·auto door) | SAM-CT35Q (auto door) | SAM-CT36Q (auto door) |
|---|---|---|---|
| Cutting range | 250×350mm | 350×500mm | 350×600mm |
| Board thickness | t=0.4-2.0mm | ||
| Material | FR4, CEM1, CEM3, etc. | ||
| Component height limit | Upper face: 21mm (including PCB thickness) | ||
| Router bit diameter | φ0.8-2.0mm | ||
| Maximum cut speed | 50mm/sec | ||
| Maximum motion speed | 400mm/sec | ||
| Repeatability | ±0.02mm (X-Y axes) or less | ||
| Z axis stroke | 25mm | ||
| Spindle RPM | Standard 40,000rpm, Option 5,000-60,000rpm (changeable) | 5,000-60,000rpm (changeable) | |
| X/Y/Z controls | AC servo motor (X-Y axes) Air cylinder (Z axis) | ||
| Power supply | φ1 AC100V 50/60Hz | ||
| Maximum electric consumption | approx. 1.2kVA (including standard dust collector [VNA-15]) | ||
| Air pressure | 0.5-0.7MPa | ||
| Air consumption | approx. 10L/min | ||
| Cutting program capacity | max. 60 kinds | ||
| Outer size | W720×D640×H510mm (manual door) | W820×D740×H533mm (auto door) | W970×D740×H533mm |
| Weight | approx. 72kg | approx. 80kg | approx. 100kg |
